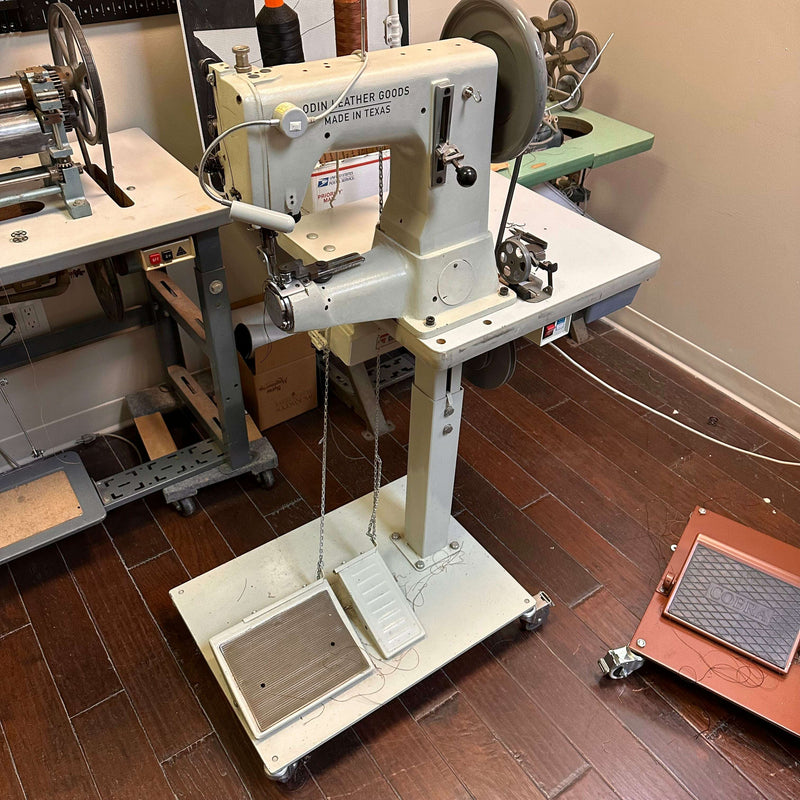

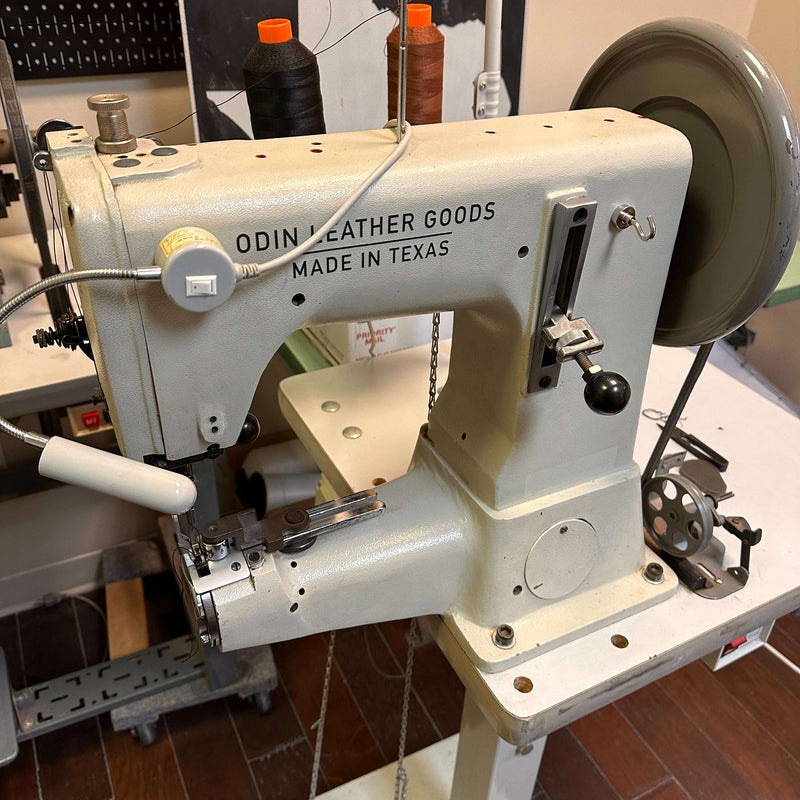

SewPro Mini 411 Heavy Duty Industrial Cylinder Arm Sewing Machine
SOLD
This is a Cylinder-bed, 1 needle, Compound Needle Feed, Walking foot, Lockstitch Machine with Large Shuttle-hook, and big bobbins for extra heavy materials.
The machine is capable of powerfully feeding materials which cannot be smoothly fed by other industrial machines. The cylinder arm and pedestal table allow you to sew heavy-duty and irregularly shaped products with ease. I have it equipped with special harness feet for making it easier to sew closer to hardware, buckles, and close to edges.
This is the very first leather stitching machine I purchased around 2014, and what I learned to machine stitch with. It was purchased from the Boggle-Greenwell Machine Company in Grand Prairie, Texas, and continued to be serviced by them until they closed shop in 2017.
It's been well taken care of, oiled, and serviced, but no longer serves a need in our production workflow. It's time to pass this machine on to another craftsman.
Condition:
- Used / Good
Applications:
- This machine is suitable for sewing heavy leather bags, saddles, harnesses, bio-plastic products, nylon webbing, luggage, and other heavy materials that require thick thread and open-arm application.
- An outstanding machine for heavy-duty gun belt, holster, and sheath making
Features:
- Sews from 6 oz. to 7/8″
- 794, 7×4, 7×3 Needle Systems
- Triple Feed mechanism
- Reverse function to stitch in same holes
- Stitch Length from 3-22 stitches an inch
- 28 LED Super Beam Lamp
- Heavy-Duty Speed Reducer
- Digital DC Servo Motor
- Cylinder diameter: 3 ¼ inch
- Maximum Stitch Length 3/8 inch
- Needle Bar Stroke 56 mm
- Foot Lift 7/8 inch
- Hook Large Capacity Shuttle Hook
- Needle System 794
- Needle Sizes 140-250
- Thread 138-346
- Distance from the needle to the machine arm 9“
Includes:
- Digital Servo Motor
- Speed Reducer
- Extra Needles
- Cone of 207 Thread
- Pedestal Table
- Holster Plate
- Double presser feet
- Bobbins
- Bobbin Winder On the table
- Additional Hook
Delivery Options:
- Arrange your own shipping
- Pick up in Lewisville, Texas
