Odin Leather Goods

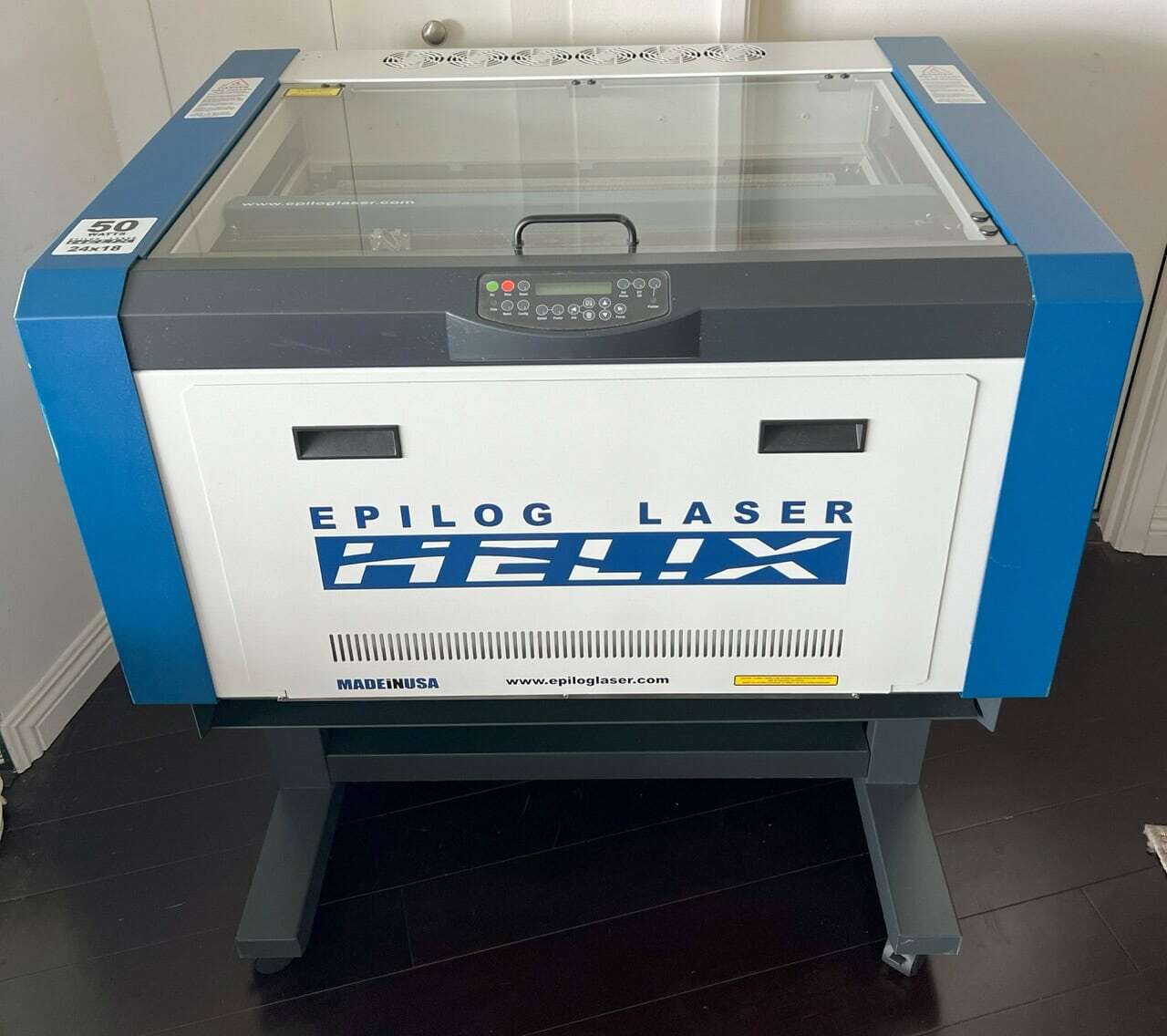

Epilog Helix 24x18 50W Laser Engraver w/ Rotary, Air Compressor and Exhaust Blower

You can find cheaper, less expensive lasers, but nothing better than this Epilog with regards to speed, quality of engraving, and cutting.

This well-maintained Epilog Helix 24 50-watt RF CO2 Laser System is a powerful and efficient engraving machine that uses laser technology to create high-quality engraved or cut designs. With a brand name like Epilog and their world-class support, you can trust that this machine is top-of-the-line and perfect for all your engraving needs. Featuring a computerized machine operation and a power of 50 W, this engraving machine is ideal for businesses and industrial settings and/or serious home hobby shops looking to turn a profit. It's perfect for engraving on a variety of materials, including acrylic, glass, wood, anodized aluminim, leather, paper and cardstock, fabrics and more.

Specs:

  • Manufacturer:  Epilog
  • Model # 8000 Laser System
  • Unit Size: 36.5″ x 32″ x 39.8″
  • Serviced by Engraving Concepts in Arlington, TX
  • Printable area: 24″ x 18″Printable area: 24″ x 18″
  • Approx. Hours Used: New RF Laser Tube Installed (approximately 45hour)
  • Cutting Software:  Epilog Software
  • Condition: Excellent

Upgrades and Additional Features:

  • Red Dot Pointer
  • Air Assist
  • Rotary Attachment (used for engraving tumblers, drinkware, and other cylindrical items.
  • Honeycomb table for cutting applications and a flat vacuum table standard marking and engraving work

Requirements:

  • Laptop or desktop computer running a Windows operating system
  • Epilog Job Management Software and Print Drivers

Additional Information/Notes:

Attach an air compressor (INCLUDED) to our included Air Assist to remove heat and combustible gases from the cutting surface by directing a constant stream of compressed air across the cutting surface.

Resolution Range: User-controlled from 75 to 1200 DPI.

Exhaust- 350 – 400 CFM (595-680 m3/hr) external exhaust to the outside or internal filtration system is required. There is one output port, 4″ in diameter.

Speed and Power Control: Computer or manually control speed and power in 1% increments to 100%. Vector color mapping links speed, power, and focus to any RGB color.

Relocatable Home or Start Position- When engraving items that are not easily placed at the top corner of the laser work surface, you can set a new home position by hand with the convenient Movable Home Position feature on the Legend Series Lasers.

Red Dot Pointer- Since the laser beam is invisible, the Red Dot Pointer on Epilog’s Mini and Helix Lasers allows you to have a visual reference for locating exactly where the laser will fire.

The Laser Dashboard™ controls your Epilog Laser’s settings from a wide range of software packages – from design programs to spreadsheet applications to CAD drawing packages.

Operating Modes: Optimized raster, vector or combined modes.
Print Interface: 10 Base-T Ethernet or USB Connection. Compatible with Windows® XP/Vista/7/8/10.

Electrical Requirements: Auto-switching power supply accommodates 110 to 240 volts, 50 or 60 Hz, single phase.

Shipping

Due to the weight and sensitivity of this item, it will ship freight, and take up to 7 business days. The shipping weight is 380 lbs and the dimensions are 48″x40″x48″.
